General characteristics
The UVR6 type voltage regulator is an advanced
Design electronic regulator that ensures excellent
Performance of the alternators while they are running
And during starting. The regulator is equipped with a
Complete protection system against operation conditions
That could be dangerous for the machine. The UVR6
Regulator is suitable for being used with all Mecc Alte
Alternators and is standard supply for power outputs
Above or equal to 85 KVA, both three-phase and single
Phase.

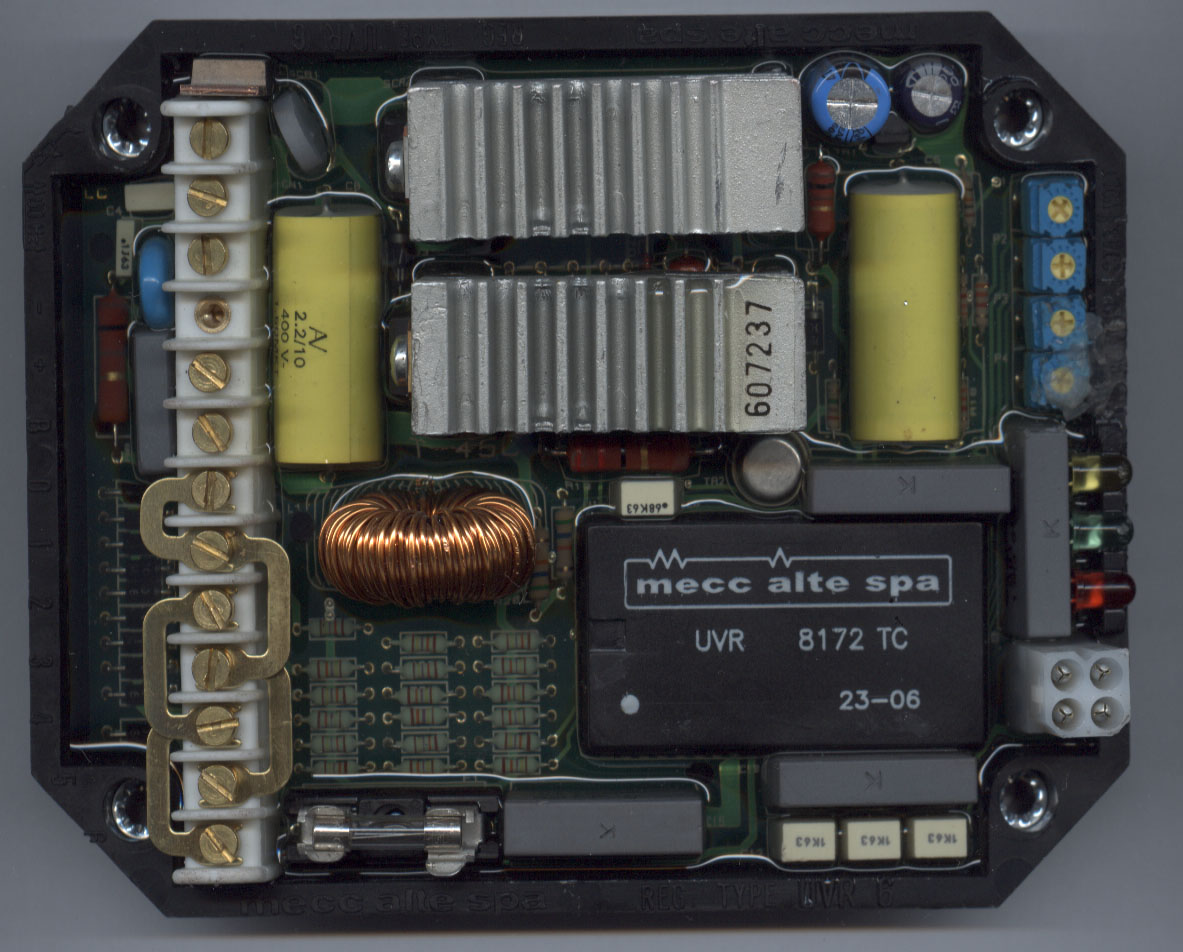

The components of this regulator (see fig. 8) are modern
Utilising solid-state integrated circuit technology. These
Components were chosen to guarantee maximum durability
And reliability. The entire unit, also made using a
Hybrid circuit, is inside a box of modest dimensions that
Has been impregnated with resin to protect against vibrations
And ingress of water.
