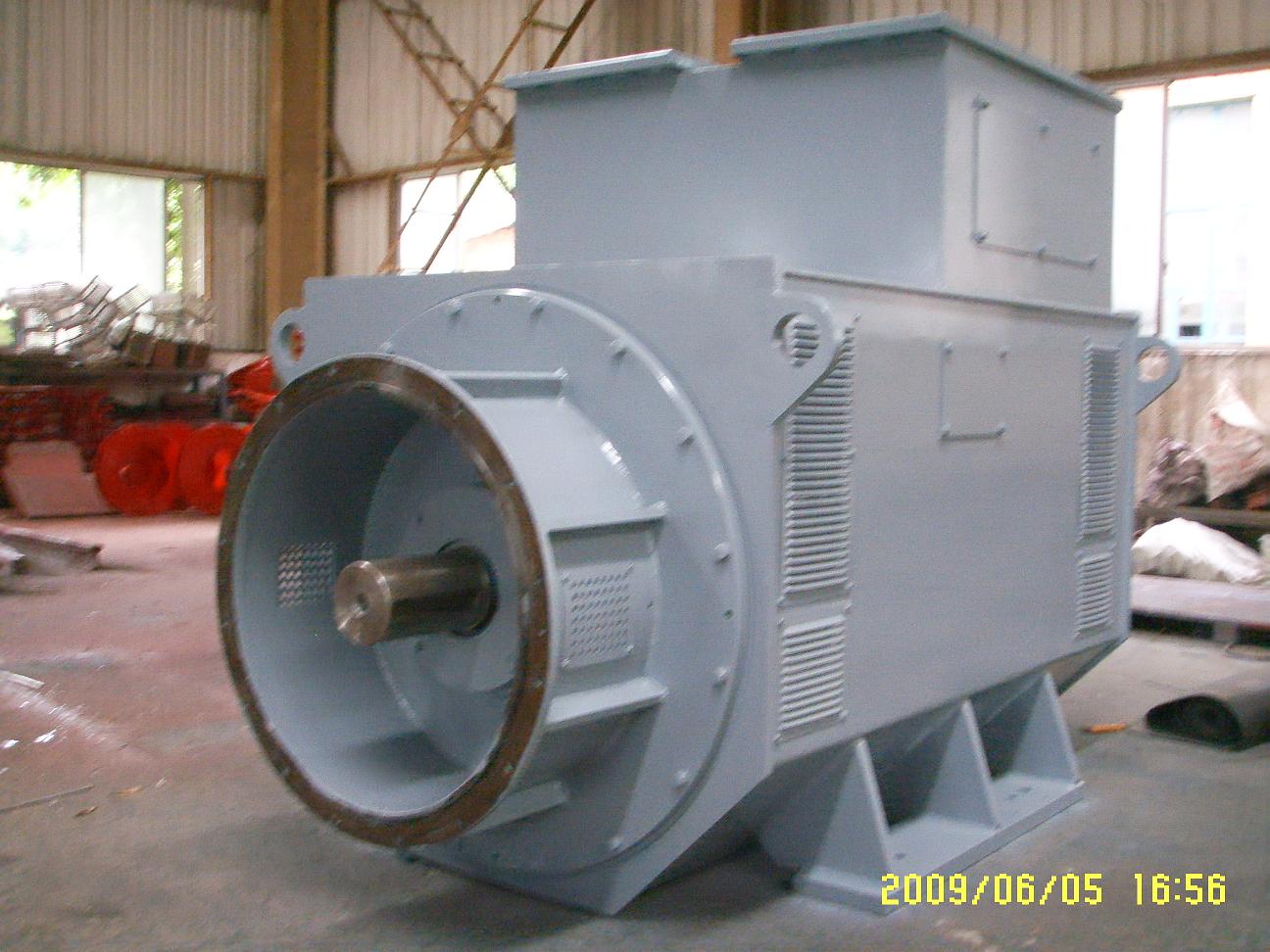

Our company is the agent for selling Siemens/ HYUNDAI HIGH VOLTAGE generators that made by CSIC Electrical Machinery Science&Technology Co., Ltd. / Zhenjiang China Marine-XianDai Generating Co., Ltd. On Siemens technology.

1\Basic technical requirement
* Requirements IEC 60034
* Relating China's national standard and departmental standard
* Relating standards of matching equipment plant
* Enterprise standard
Dimension and weight measures with international measurement, voltage with 110~11, 000V, current with 40~3850A, capacity with 20~3000kVA
* Specification and Ambient temperature 40ºC~50ºC
* Rated output power 120~8000kVA
* Rated Voltage and Connection 110~11000V / 3P/4W
* Rated Current 170~6850A
* Rated Power factor 0.8(lagging)
* Rated Fequency 50/60Hz
* Rated Speed 1500 / 1800 rpm
* Direction of rotation CCW / DCW (face to DE)
* Insulation class F
* Temperature rise class F
* Load general load
* Operation Single / sustained parallel operation
* Voltage adjustment range ± 10%
* Efficiency 94.2%

4\Mechanical data
* Length× Width× Height According to the outline drawing
* High of shaft center according to the outline drawing
* Type of construction IMB20
* Moment of inertia of rotor according to the shaft drawing
* Location and direction of terminal box according to user
* Cable gland according to user
* Weight of machine according to drawing
* Radio interference suppression degree N (VDE standard)
* Type of protection
Generator IP23
Terminal box IP44
6\Bearing
* Bearing Rolling bearing / Sliding bearing
