We are a special company that service generator and generator-sets. Manifold Marine brushless generator parts were sold by us in the world.

We can suply *AVR (Automatic Voltage Regulator) for Marathon generators.

Type SE350
Type DVR2000E
Type DVR2000E+

We will give the best quality and price to you, welcome contact us.

GENERAL

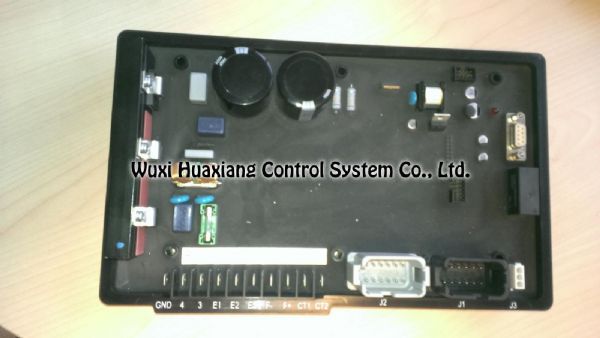

The DVR® 2000E is an electronic, solid-state, microprocessor-based control device. The DVR® 2000E regulates the
Output voltage of a brushless, AC generator by controlling the current into the generator exciter fi eld. Input power
To the DVR® 2000E is from a multi-pole, high-frequency, permanent magnet generator (PMG).
The DVR® 2000E is supplied in an encapsulated package designed for behind-the-panel mounting. The DVR® 2000E
Is held in place by thread-forming screws that thread into its plastic shell. Front panel indicators (LEDs) annunciate
Regulator status and system conditions. DVR® 2000E connections are made through quarter-inch, quick-connect
Terminals on the rear panel. A 9-pin dB-9 type connector on the rear panel provides communication between the
DVR® 2000E and an IBM compatible PC.

When the DVR® 2000E Voltage regulator is mounted on the generator at the factory a molded cover is provided.
This cover allows the system to be in compliance with UL 508 as live terminals and heatsinks could be exposed
To unintentional contact. As stated this cover must be installed whenever the voltage regulator is energized.
