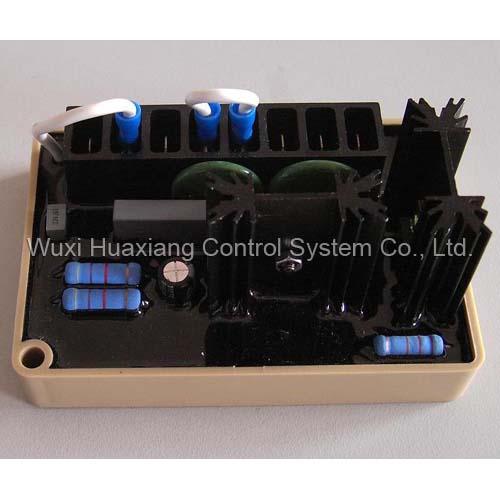

SE350 VOLTAGE REGULATOR

INTRODUCTION
The SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field.

SPECIFICATION OF SE350 REGULATOR
Sensing & Power Input: 190-240 Vac
Burden: 500 VA
Output Power- Continuous: 73 Vdc at 3.5 Adc (255w)
Output Power - Forcing(240 Vac Input Power): 105 Vdc at 5 Adc (525w)
Regulation: 1.0%
Remote Voltage Adjustment Range: ± 10% with 2000 ohm rheostat
± 5% with l000 ohm rheostat
Frequency Compensation: Adjustable
Roll off frequency: 54-61 Hz for 60 Hz
45-51 Hz for 50 Hz
Operation Weight6.5 oz.
Operating Temperature: - 40º C to + 60º C
Storage Temperature: - 65º C to + 85º C
Power Dissipation: 8 watts maximum
Size: 3.94" L X 2.66± W X 2.20: H
Voltage Buildup: Internal provisions for automatic voltage build up from generator residual voltage as low as 10 Vac.

EMI Suppression: Internal Electromagnetic Interference Filter (EMI Filter )
