SPECIFICATIONS

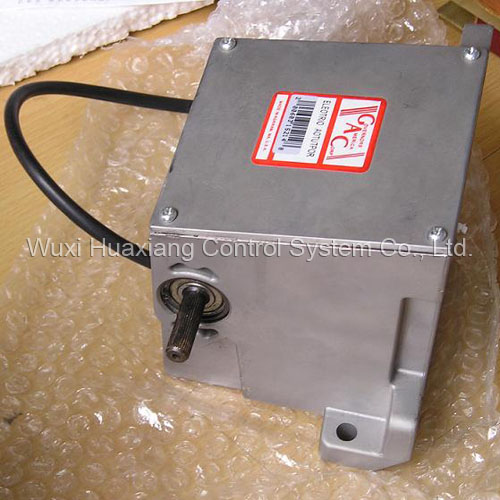

The 225 Series electric actuator is a rotary output. Linear torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides tail safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. This design combines fast operation, multi voltage usage wider rotation angles, and proven reliability. The actuator can operate directly from 12, 24, or 32 volt battery supplies.
The speed of operation of the actuator is typically faster than competitive units, thus it provides more stable and rapid response to transient conditions.
Applications include most block pumps, with or without mechanical governors, distributor type pumps, and medium sized carbureted engines. The 25 degrees of rotation expands the application to a wider variety of engines.

PECIFICATIONS
PERFORMANCE
Available Torque: Max 2.2 Ib-ft(2.7 Nm)
Maximum Operating Shaft Angular Travel: 25± 1 degree CW / CCW
POWER INPUT
Operating voltage: 12, 24, or 32 VDC
Normal Operating Current: 3 A at 12 VDC
1.5 A at 24 / 32 VDC
Maximum Current-Continuously Rated: 8 A at 12 VDC, 9A for HOS
4 A at 24 / 32 VDC
ENVIRONMENTAL
Temperature Range: -65· To -200· F (-54· To +95º C)
Relative Humidity: Up to 100%
All Surface Finishes: Fungus proof and corrosion resistant
PHYSICAL
Weight: 8.25 Ibs. (3.75 kg )
Mounting: Any position, electrical connector at the top preferred
RELIBILITY
Vibration: Up to 20 G @ 50-500 Hz.
Testing: 100% Tested
MATING HARDWARE
Connector ACB 225/ADB 225: EC 1000/MS3106R 14S-6S (6 pins)
ADC 225: Supplied with Actuator
Lever (ACB 225/ADB 225/ADC225S): LE1400-2
ADC 225: LE1500-2
Rod End Bearings (to attach a 1/4-28THD linkage rod to the lever): BR 200 (right hand)
: BR 201 (left hand)
Wiring Harness ADC 225: Supplied with Actuator
ACB 225/ADB 225: Various Lengths available from GAC
