The DSE7560 is an Automatic Transfer Switch andMains (Utility) ControlModule, designed to automatically synchronise multiple DSE7510s with single or multiple mains (utility) supplies.
The module instructs the DSE7510s tomake precise changes to the generating set outputs.
This makes the module suitable for many applications including peak lopping, peak shaving
and no-break return. The module has the ability to monitor the mains (utility) supply and start
and stop the generating sets (being controlled by a DSE7510) upon removal or detection of the
mains (utility) supply. The modules operational status is indicated on the LCD display and the
front panel LEDs.

FEATURES
Multiple language options
Back-lit 4-line text LCD display
Configurable timers
Configurable inputs (9)
Configurable outputs (5)
Automatic hours run balancing
Peak lopping control for DSE7510
controlled generator bus
Peak shaving
No-break return
PIN protected programming
Full remote control and telemetry
Mains (utility) fail monitoring
Load demand scheme
Multiple mains (utility) monitoring
System lock input
Load switching control pushbutton
inputs
Event log
LED indicators
PC configurable

BENEFITS
On-site module configuration
In-built diagnostics removes the
requirement for service equipment
Transfers between mains and
generator
Remote control and monitoring of
the module using comprehensive
DSE PC software
License free PC software

OPERATION

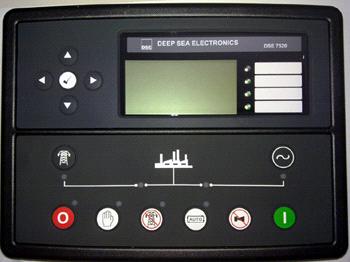

The module is operated using the
front STOP/RESET, MANUAL,
AUTO, TEST and START push
buttons.
The first four of these push buttons
include LED indicators. Additional
push buttons provide LCD page
display scroll, lamp test, mute and
load switching functionality.
