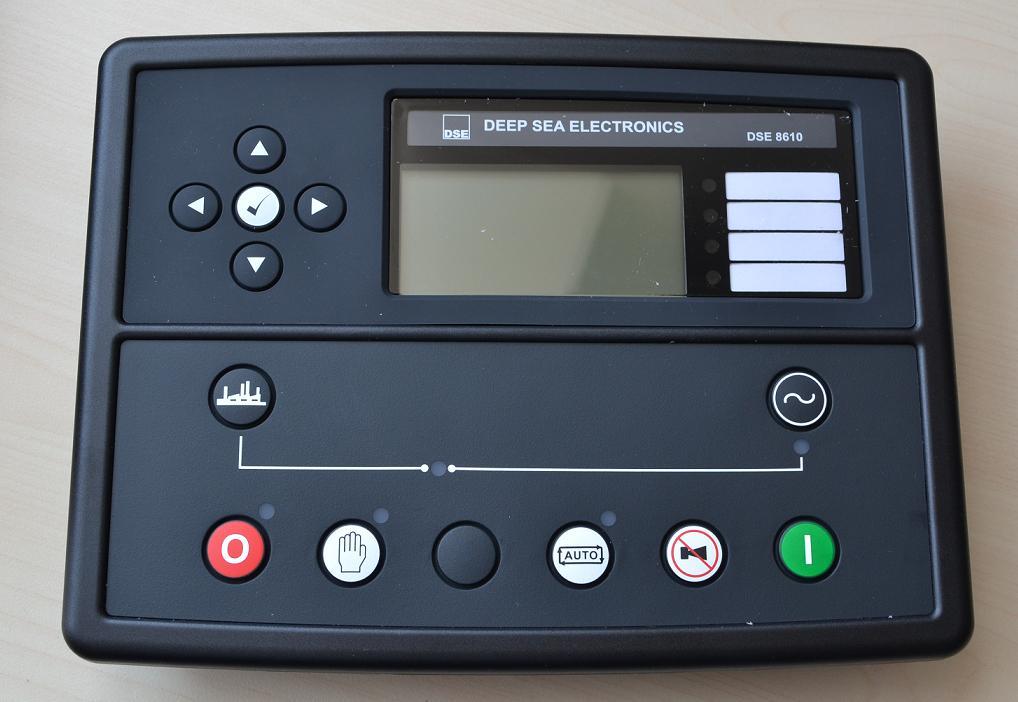

DSE8610 AUTO START LOAD SHARE MODULE
The DSE8610 is an easy to use multi-generator loadshare system, designed to synchronise up to 32 generators including electronic and non-electronic engines.
The DSE8610 monitors the engine and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition. Failures are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder. The event log will record 250 events to facilitate easy maintenance.
An extensive number of fixed and flexible monitoring, metering and protection features are included as well as sophisticated communication and system expansion options.
Using the DSE PC Configuration Suite Software allows easy alteration of the operational sequences, timers and alarms. With all communication ports able to be active at the same time, the DSE8610 is ideal for a wide variety of demanding load share applications.

LOAD SHARE FEATURES INCLUDE:
Peak lopping
Sequential set start
Manual voltage/frequency
adjustment
ROCOF and vector shift
Generator load demand
Automatic hours run balancing
Mains (Utility) de-coupling
Mains (Utility) de-coupling
test mode
Dead bus sensing
Bus failure detection
Direct governor and AVR
connections/controls
Volts and frequency matching
kW and kVAr load sharing
